Cylindrical Black Inflatable Marine Heavy Lifting Airbags

Brand Name : Jerryborg

Model Number : 1.2m*15m

Certification : ISO17357 CCS BV

Place of Origin : Shandong, China

MOQ : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 pieces per year

Delivery Time : 10-20 work days

Packaging Details : nude packing

brand name : Jerryborg

place of origin : Qingdao,China

color : black

part : inflatable tool,pull ring

certificate : CCS,BV,LR,UKAS,ABS,ANAB

size : customized size

shape : cylindrical body

material : natural rubber

warranty : 24 months

Price : negotiable

Contact Now

Marine Heavy Lifting Airbag With High Bearing Capacity

Heavy Lifting Airbag Description

Heavy lifting airbag is composed of synthetic-tire-cord layers and outer rubber layer. The synthetic-tire-cord layer is made of strong reinforcement layer which is resistant to external force and twist. Heavy lifting airbag is a cost-effective and flexible heavy lifting and transportation method.

Cylindrical Black Inflatable Marine Heavy Lifting Airbags

Heavy Lifting Airbag Advantages

  • Beyond space limitation
  • Saving labor cost and time
  • High capacity against compression and twisting
  • Lightweight and easy to replace
  • High carrying capacity
  • Anti-aging resistance and anti-wear resistance
  • New design of anti-explosion construction

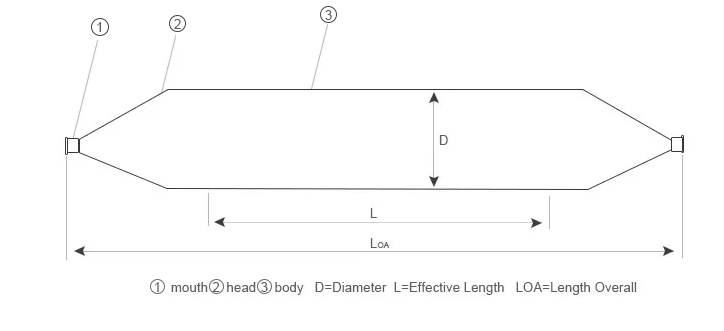

Heavy Lifting Airbag Constructions

  • Structure: outer rubber layer, synthetic tire cord layer, inner rubber layer
  • Cord layers: 4-10 layers
  • Shape: a cylindrical body with two heads
  • Accessories: pressure gauge, pull ring, three-way piece, ball valve, connecting pipe

Cylindrical Black Inflatable Marine Heavy Lifting Airbags

Heavy Lifting Airbag Specification

Series Model Diameter(m) Working Pressure(Mpa) Working Height(m) Beating Capacity(Ton/m)
0.4D 0.5D 0.6D 0.4D 0.5D 0.6D
S1

S10

0.8 0.20 0.32 0.40 0.48 15.1 12.6 10.0
1 0.16 0.40 0.50 0.60 15.1 12.6 10.0
1.2 0.14 0.48 0.60 0.72 15.8 13.2 10.6
1.5 0.11 0.60 0.75 0.90 15.5 13.0 10.4
S11 0.8 0.19 0.32 0.40 0.48 14.3 11.9 9.5
1 0.15 0.40 0.50 0.60 14.1 11.8 9.4
1.2 0.13 0.48 0.60 0.72 14.7 12.2 9.8
1.5 0.10 0.60 0.75 0.90 14.1 11.8 9.4
S12 0.8 0.24 0.32 0.40 0.48 18.1 15.1 12.1
1 0.19 0.40 0.50 0.60 17.9 14.9 11.9
1.2 0.16 0.48 0.60 0.72 18.1 15.1 12.1
1.5 0.13 0.60 0.75 0.90 18.4 15.3 12.2
1.8 0.10 0.72 0.90 1.08 17.0 14.1 11.3
S2 S20 1 0.24 0.40 0.50 0.60 22.6 18.8 15.1
1.2 0.20 0.48 0.60 0.72 22.6 18.8 15.1
1.5 0.16 0.60 0.75 0.90 22.6 18.8 15.1
1.8 0.13 0.72 0.90 1.08 22.0 18.4 14.7
2 0.12 0.80 1.00 1.20 22.6 18.8 15.1
S21 1 0.27 0.40 0.50 0.60 25.4 21.2 17.0
1.2 0.23 0.48 0.60 0.72 26.0 21.7 17.3
1.5 0.18 0.60 0.75 0.90 25.4 21.2 17.0
1.8 0.15 0.72 0.90 1.08 25.4 21.2 17.0
2 0.14 0.80 1.00 1.20 26.4 22.0 17.6
S22 1 0.31 0.40 0.50 0.60 29.2 24.3 19.5
1.2 0.26 0.48 0.60 0.72 29.4 24..5 19.6
1.5 0.20 0.60 0.75 0.90 28.3 23.6 18.8
1.8 0.17 0.72 0.90 1.08 28.8 24.0 19.2
2 0.15 0.80 1.00 1.20 28.3 23.6 18.8
2.5 0.12 1.00 1.25 1.50 28.3 23.6 18.8
S3 S30 1 0.35 0.40 0.50 0.60 33.0 27.5 22.0
1.2 0.29 0.48 0.60 0.72 32.8 27.3 21.9
1.5 0.23 0.60 0.75 0.90 32.5 27.1 21.7
1.8 0.19 0.72 0.90 1.08 32.2 26.8 21.5
2 0.17 0.80 1.00 1.20 32.0 26.7 21.4
2.5 0.14 1.00 1.25 1.50 33.0 27.5 22.0
For further information free to contact us.
